Step by Step Installation Guide for 40amp, 50amp and 60amp Solar Charge Controller

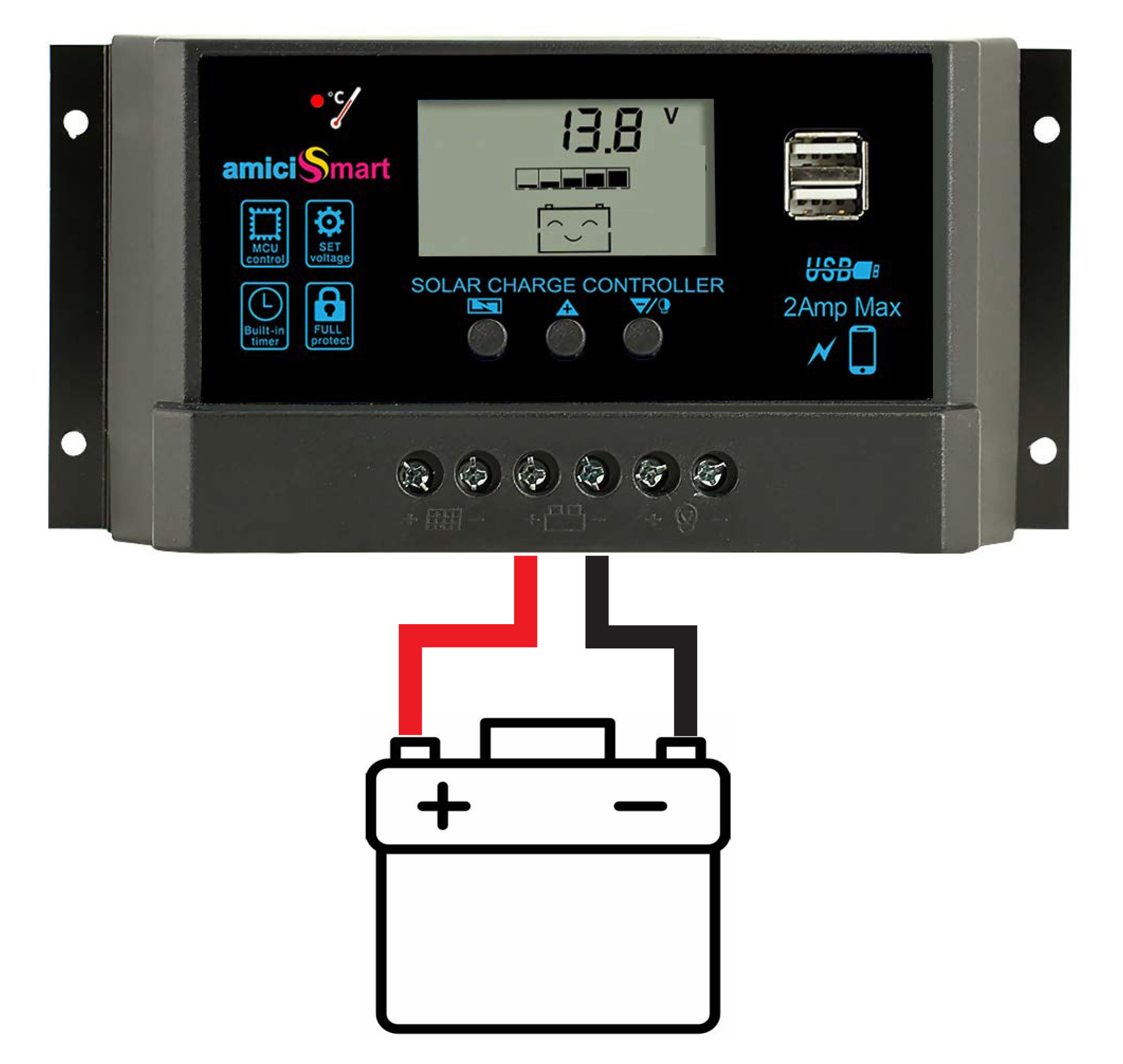

1. Connect battery first

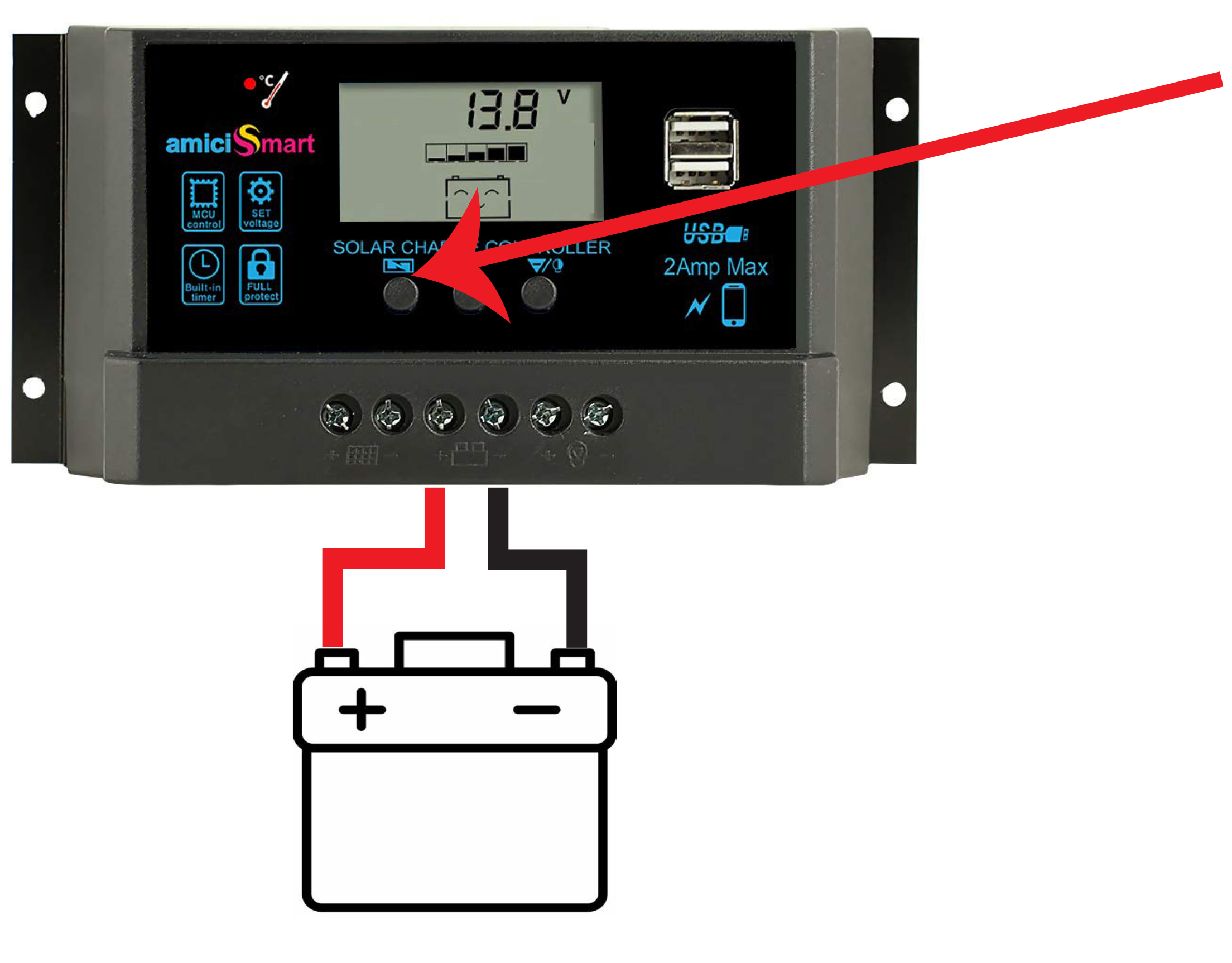

2. Battery Type Selection

Press Menu button 11 times then long press for 10 seconds.

Then use the “+” and “-” button select battery type.

b01- Sealed Battery b02- Gel Battery b03- Flood Battery

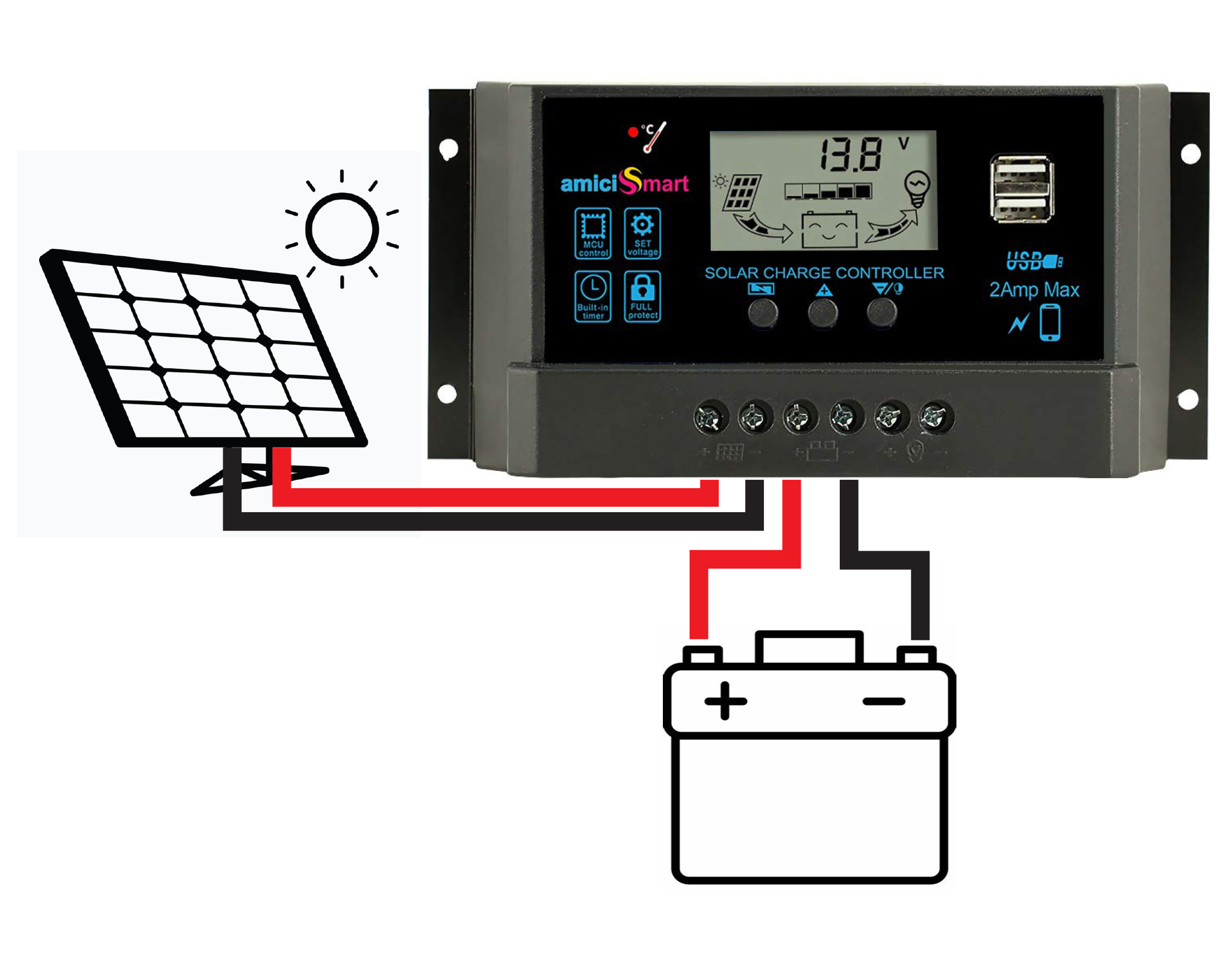

3. Connect Solar Panel

Connect the right solar panel according to your battery.

If you have 12V Battery then you need 12V solar panel.

If you have 24V Battery then you need 24V solar panel.

What is your solar panel voltage?

If your solar panel Voc 20 to 25V. It means your solar panel is 12V.

If your solar panel Voc 40 to 50V. It means your solar panel is 24V.

Solar panel according to Solar charge controller.

Per the 40 amp charge controller, you can connect up to a 520-watt solar panel per 12V solar panel.

Per the 40 amp charge controller, you can connect up to a 1040-watt solar panel per 24V solar panel.

Per the 50 amp charge controller, you can connect up to a 650-watt solar panel per 12V solar panel.

Per the 50 amp charge controller, you can connect up to a 1300-watt solar panel per 24V solar panel.

Per the 60 amp charge controller, you can connect up to a 780-watt solar panel per 12V solar panel.

Per the 60 amp charge controller, you can connect up to a 1560-watt solar panel per 24V solar panel.

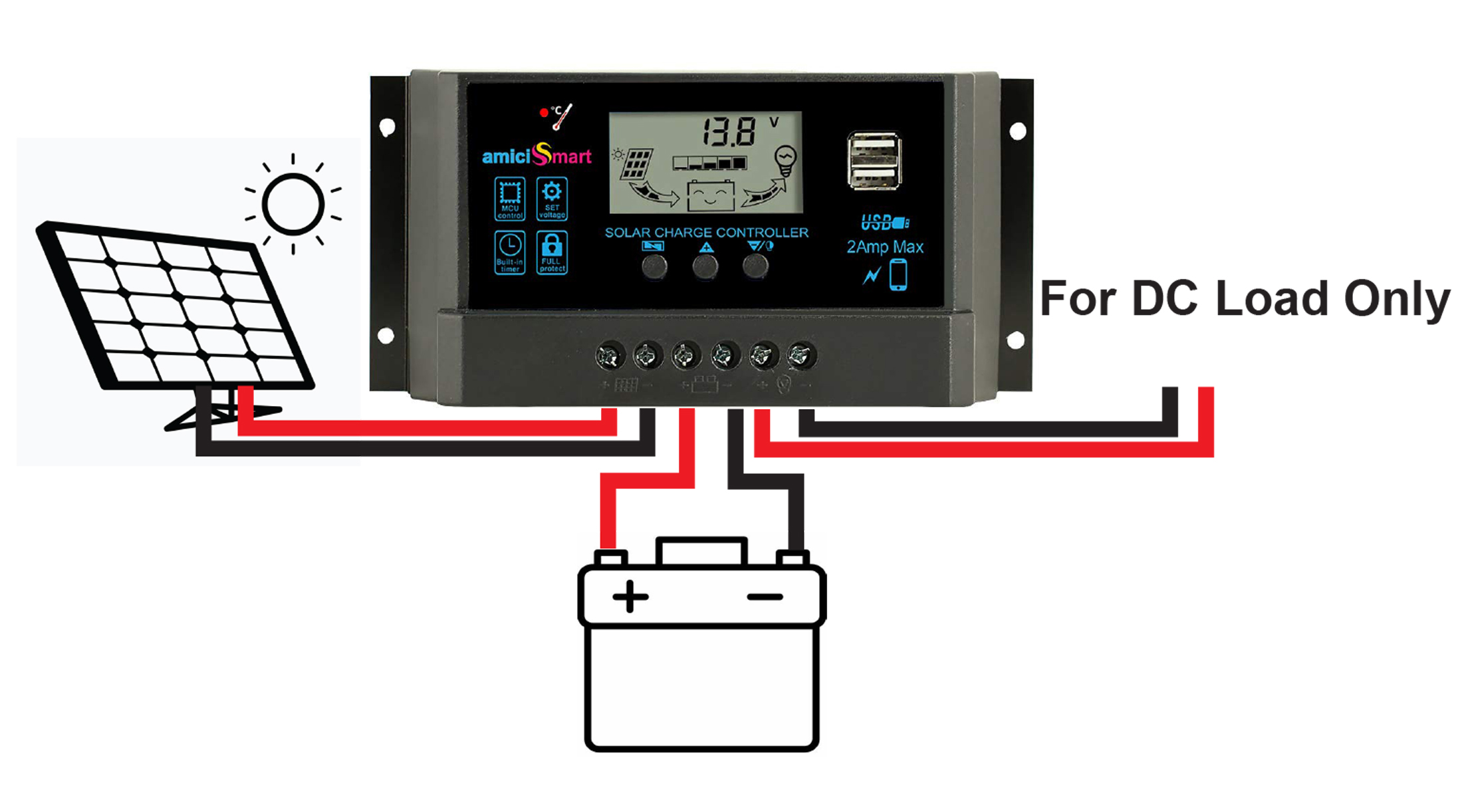

4. Connect DC Load

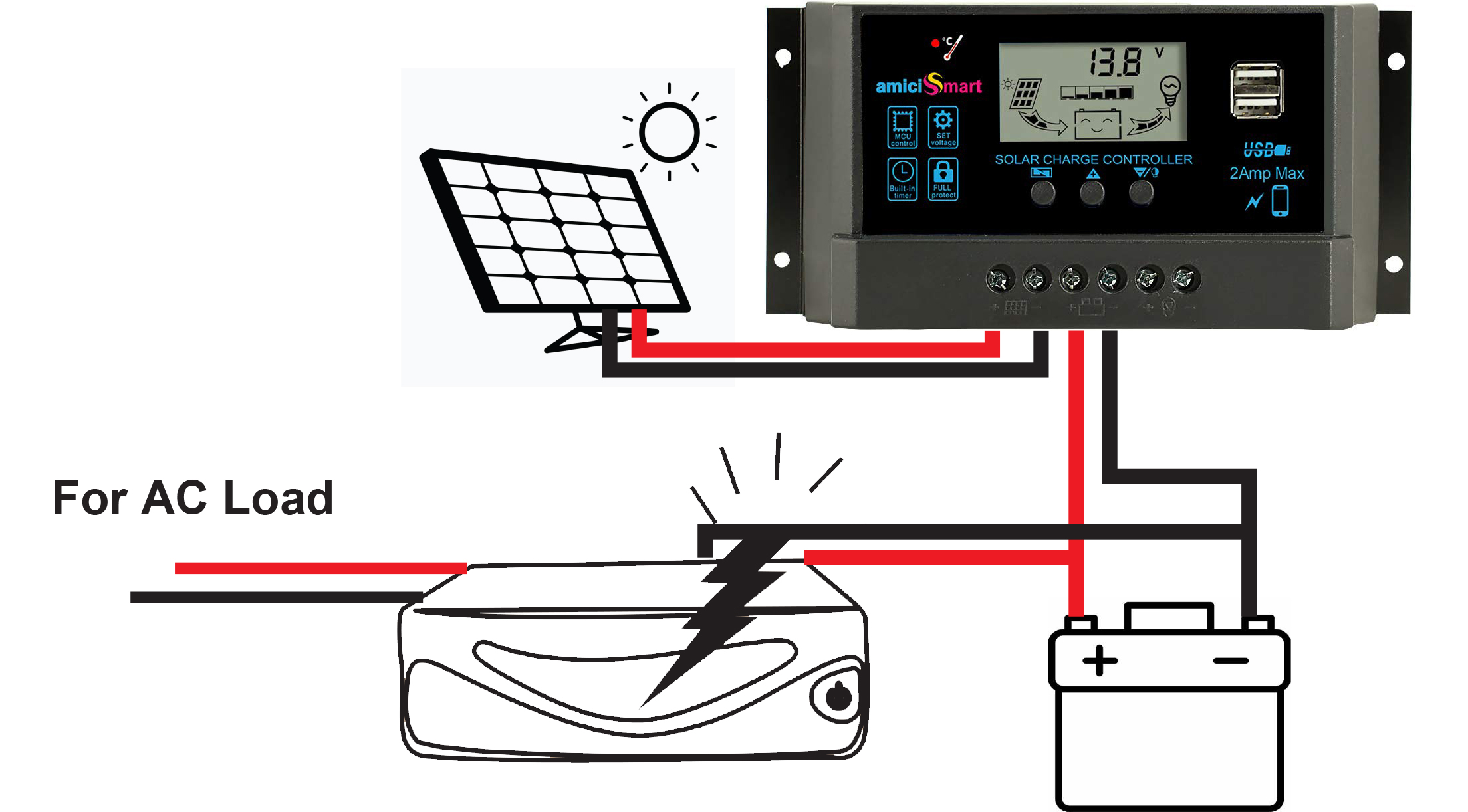

5. Connect inverter

If you want to convert ​​​DC to AC?

It would be best if you connected the battery to the inverter.

For more information please read the user manual
